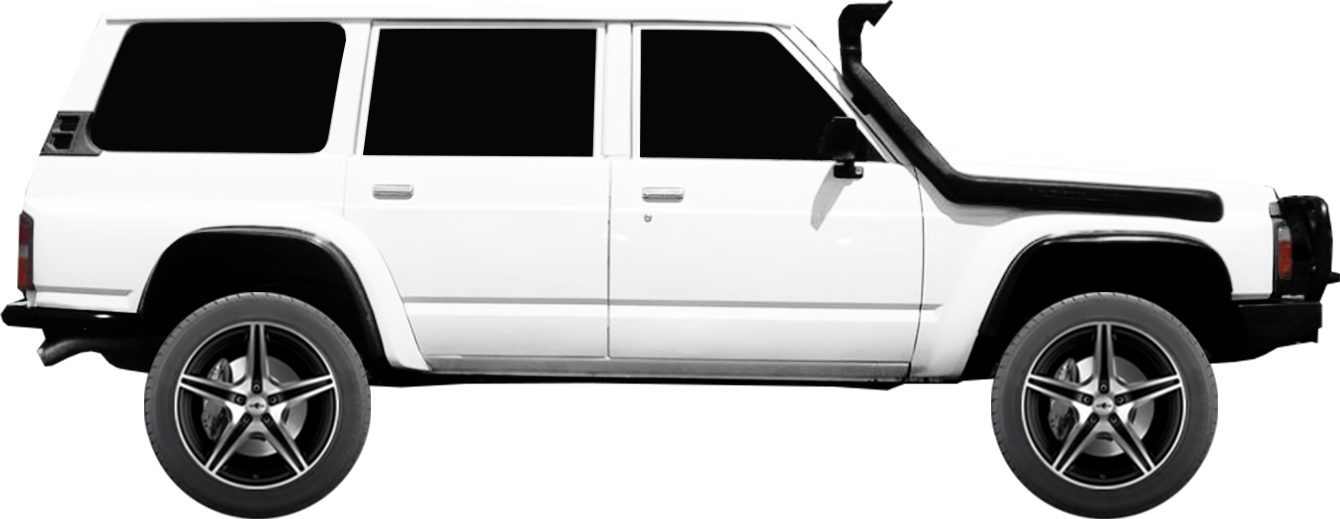

Battery for NISSAN PATROL GR IV (Generation 4) (Y60, GR)
Compatible Car Batteries for NISSAN PATROL GR IV (4) (Y60, GR)
Model years: 08.1987 - 02.1998. Car body type: Closed Off-Road Vehicle
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD (Y60A) | 09.1988 - 06.1997 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
12.4” x 6.89” x 8.07” 315 x 175 x 205 mm |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 D (Y60GR) | 11.1988 - 06.1997 |
11.93” x 6.89” x 8.94” 513 x 226 x 223 mm |
12.05” x 6.81” x 8.74” 513 x 223 x 223 mm |
12.4” x 6.89” x 8.07” 315 x 175 x 205 mm |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 Cat | 11.1988 - 02.1998 |
11.93” x 6.89” x 8.94” 518 x 279 x 240 mm |
12.05” x 6.81” x 8.74” 271 x 175 x 220 mm |
12.4” x 6.89” x 8.07” 257 x 172 x 200 mm |
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD | 10.1995 - 02.1998 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
12.4” x 6.89” x 8.07” 315 x 175 x 205 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD (Y60A) | 09.1988 - 06.1997 | 850 | 800 | 630 |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 D (Y60GR) | 11.1988 - 06.1997 | 1150 | 1000 | 680 |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 Cat | 11.1988 - 02.1998 | 1450 | 680 | 510 |
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD | 10.1995 - 02.1998 | 850 | 800 | 630 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD (Y60A) | 09.1988 - 06.1997 | 105 | 95 | 90 |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 D (Y60GR) | 11.1988 - 06.1997 | 200 | 170 | 90 |
| NISSAN PATROL GR IV (4) (Y60, GR) 4.2 Cat | 11.1988 - 02.1998 | 240 | 75 | 68 |
| NISSAN PATROL GR IV (4) (Y60, GR) 2.8 TD | 10.1995 - 02.1998 | 105 | 95 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: COMLINE Battery Code: CB335PL Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 630 A Battery Capacity: 95 AH Post Positions: 0 Filled Weight: 20.3 kg Length: 304 Width: 173 Height: 220 |  |
Battery Brand: DETA Battery Code: DF1853 Voltage: 12 V Battery Capacity: 185 AH Height: 223 Width: 226 Length: 513 Cold Cranking Amps (CCA): 1150 A Post Positions: 3 Hold-down Type: B0 |  |
Battery Brand: TUDOR Battery Code: TG1703 Voltage: 12 V Battery Capacity: 170 AH Height: 223 Width: 223 Length: 513 Cold Cranking Amps (CCA): 950 A Post Positions: 3 Hold-down Type: B00 |  |
Battery Brand: EXIDE Battery Code: EC904 Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 680 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: 1 Hold-down Type: Korean B1 |  |
Battery Brand: DETA Battery Code: DF2353 Voltage: 12 V Battery Capacity: 235 AH Height: 240 Width: 279 Length: 518 Cold Cranking Amps (CCA): 1450 A Post Positions: 3 Hold-down Type: B00 |  |

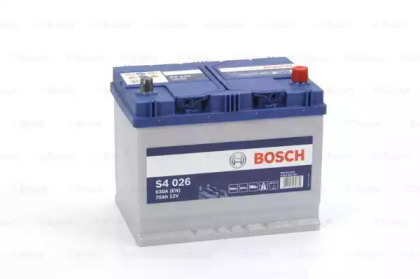

Battery Brand: BOSCH Battery Code: 0 092 S40 260 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Length: 271 Width: 175 Height: 220 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L23B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: COMLINE Battery Code: CB335PR Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 730 A Battery Capacity: 100 AH Post Positions: 0 Filled Weight: 21.6 kg Length: 304 Width: 173 Height: 220 |  |
