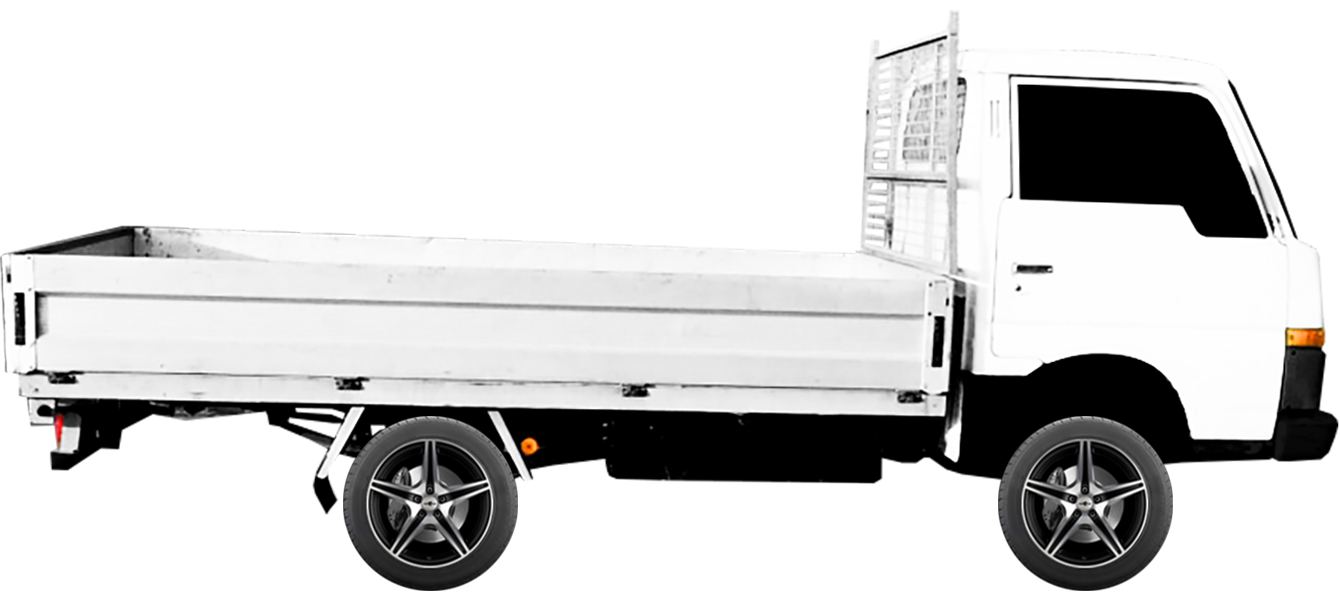

Battery for NISSAN CABSTAR (F22, H40)
Compatible Car Batteries for NISSAN CABSTAR (F22, H40)
Model years: 01.1982 - 09.1993. Car body type: Flatbed / Chassis
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| NISSAN CABSTAR (F22, H40) 2.0 (F22) | 01.1982 - 06.1992 |
11.93” x 6.89” x 8.94” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| NISSAN CABSTAR (F22, H40) 2.3 TD (F22) | 01.1982 - 06.1992 |
11.93” x 6.89” x 8.94” 407 x 173 x 240 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
9.06” x 6.77” x 7.87” 303 x 173 x 220 mm |
| NISSAN CABSTAR (F22, H40) 2.5 TD | 01.1989 - 12.1992 |
11.93” x 6.89” x 8.94” 407 x 173 x 240 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
9.06” x 6.77” x 7.87” 303 x 174 x 222 mm |
| NISSAN CABSTAR (F22, H40) 2.5 D (F22) | 02.1983 - 12.1990 |
11.93” x 6.89” x 8.94” 303 x 174 x 222 mm |
12.05” x 6.81” x 8.74” 303 x 174 x 222 mm |
9.06” x 6.77” x 7.87” 303 x 174 x 222 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| NISSAN CABSTAR (F22, H40) 2.0 (F22) | 01.1982 - 06.1992 | 850 | 800 | 480 |
| NISSAN CABSTAR (F22, H40) 2.3 TD (F22) | 01.1982 - 06.1992 | 850 | 740 | 700 |
| NISSAN CABSTAR (F22, H40) 2.5 TD | 01.1989 - 12.1992 | 830 | 740 | 700 |
| NISSAN CABSTAR (F22, H40) 2.5 D (F22) | 02.1983 - 12.1990 | 830 | 700 | 700 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| NISSAN CABSTAR (F22, H40) 2.0 (F22) | 01.1982 - 06.1992 | 105 | 95 | 60 |
| NISSAN CABSTAR (F22, H40) 2.3 TD (F22) | 01.1982 - 06.1992 | 105 | 95 | 90 |
| NISSAN CABSTAR (F22, H40) 2.5 TD | 01.1989 - 12.1992 | 105 | 95 | 90 |
| NISSAN CABSTAR (F22, H40) 2.5 D (F22) | 02.1983 - 12.1990 | 95 | 90 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5954040833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: TUDOR Battery Code: TA954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: DETA Battery Code: DB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: TUDOR Battery Code: TB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: EXIDE Battery Code: EB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
